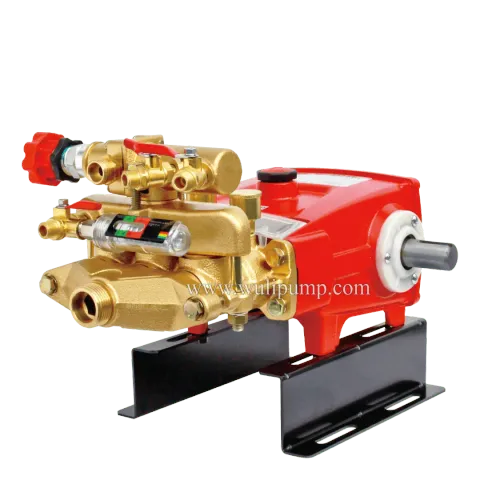

Power Sprayer: WL-45ASB2 (700 psi, 32 liter/min)
- Spheroidal-graphite cast iron manifold, outlet and inlet chambers.
- SST air chamber.
- Ceramic pressure valve and valve seat.
- SST plungers with special surface treatment.
- Automatic pressure release system.
Power sprayer pumps with specially treated stainless steel plungers better resist corrosion, scratches and pitting, thereby providing longer service life and requiring minimal maintenance.
Application:
- Power Spraying: Ideal for spraying agricultural chemicals and fertilizers on farms, greenhouses and orchards.
- Water Transport: Capable of pumping liquids up to 3 km over flat ground, or 400 m at a 60 degree incline.
- Irrigation: Provide water to crops in dry areas.
Disinfectant Spraying: Used for spraying chemical disinfectant for sanitary applications.
Working Pressure (Kgf/cm2) | 20 | 35 | 50 | Revolution (r.p.m.) |
Required Power
Suction Volume (Liter/Min.) | HP | kW | HP | kW | HP | kW |
16.0 | 0.9 | 0.7 | 1.5 | 1.1 | 2.0 | 1.5 | 430 |
19.5 | 1.0 | 0.75 | 1.8 | 1.4 | 2.5 | 1.9 | 520 |
24.5 | 1.3 | 1.0 | 2.2 | 1.7 | | | 650 |
32.0 | 1.7 | 1.3 | 2.9 | 2.2 | | | 850 |
| | | | | | | |
Dimensions (LxWxH) 40x31x37 (cm) | Weight 16 / 17 (kg) |
